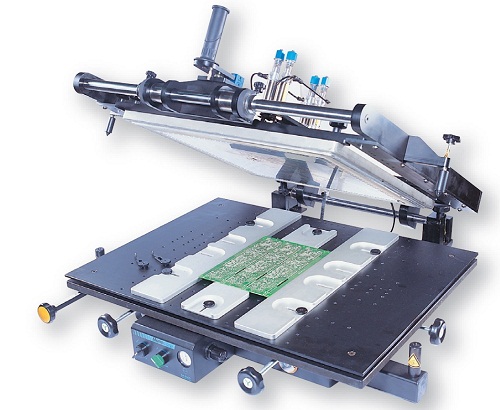

STP-550 Semiautomatic Stencil Printing Machine
| FEATURES |
|
- Special-designed PCB printing machine for lead free and new style component.
- When the stencil separate with PC board using vertical lift up function.
- It could keep clean the surface of the PC board.
- Suitable for fine pitch layout printing.
- Flexible double Side board fixed base.Adjustable down ward pressure valve.
- Button switch operation, Automatic control cylinder frame up and down, twin cylinder control metal squeegee.
- Fix the press and angle. Printing direction from left to right. Single or double side PC board printing are available.
|
|
|
| SPECIFICATIONS |
|
- Suitable frame:24"x 24"(600 x 600mm)
- Printing area: 20" x 22''(500 x 560mm)
- Repeatability: 0.008 mm
- Weight: 60 Kgs
- Length of squeegee : 220mm
- Size:840 x 920 x 250mm
|
|
Key Features:
- Vertical separation of stencil from PCB for high-reliability, ultra fine-pitch printing.
- Dual squeegees with independent pressure controls for bi-directional printing.
- Squeegee holders mounted to linear slides maintain consistent height and pressure throughout print stroke.
- Ergonomic design with unique side-to-side squeegee motion for maximum operator ease.
- Large work area for PCBs up to 356 mm x 430 mm (14" x 17")
- Accepts stencil frames up to 600 mm x 600 mm (24" x 24")
- Highly precise, heavy-duty design weighs approximately 75 Kg (165 lbs.)
- Pneumatically controlled raising and lowering for PCB loading/unloading.
- Universal PCB holders and supports for single or double-sided boards.
- Metal and rubber squeegees included.
At a fraction of the cost, the new and improved STP-550 provides an extremely reliable solution for ultra fine-pitch applications, through an innovative design that allows true vertical separation of the stencil from the PCB, prior to the angular lift of the stencil holder. In addition, the STP-550 features dual squeegees for bi-directional printing, mounted.
To high-precision, linear slide bearings that maintain squeegee height and pressure throughout the operator-controlled print process. Self-locking dial adjustments allow quick and easy X, Y, Z, and R axis alignment of the PCB to stencils in frames up to 600 mm x 600 mm (24" x 24").
STP-550 Specifications |
Stencil Frame Size | 300 mm x 300 mm to 600 mm x 600 mm
(12" x 12" to 24" x 24") |
Work Area /
Maximum PCB Size | 356 mm x 430 mm (14" x 17") |
X and Y Axis Range | ±13 mm (±0.5") |
R Axis Range | ±0.5° |
Z Axis Range | 0-19 mm (0" - .75") |
Registration Repeatability | ±0.007 mm (±0.0003") |
Underside Clearance | 25 mm (1") |
Dimensions | 965 mm L x 965 mm W x 406 mm H
(38" L x 38" W x 16" H) |
Net Weight | approx. 75 Kg (165 lbs) |
Shipping Weight | approx. 100 Kg (220 lbs) |
