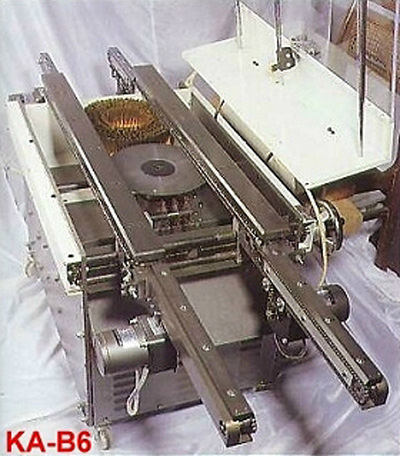

KA-B6 Automatic PCB Lead Cutting and Brushing Machine

KA-B6

Automatic PCB Brushing and Lead cutting Machine >> Product No. : KA-B6

FEATURES

PCB Working Range: 10mm ~ 300mm.
Brush is optional selected for cleaning leads adhered after cutting.
Available for connecting with Wave soldering machine in mass production.
PCB Wrap proof device is equipped.
The height of Back/Front conveyors are adjustable to meet various kind of connection.
The Tungsten Carbide Blade is excluded in the machine.
Net Weight : 200 Kgs

SPECIFICATIONS

Dimension:1160(L) x 730(W) x 800(H)
Power: 220V 50/60HZ
RPM of Spindle:4500
HP:3/4HP
Feeding Speed:0 - 3m (Adjustable)
Min. Lead Height :1.0mm Min
MAX.PCB Working Size: 500mm(L) x 300mm(W)
RPM of Brushing:600 RPM/1/2HP
